Getting Started

This documentation is intended to explain how to compute spatial and time series estimates using GRACE/GRACE-FO time-variable gravity measurements. gravity-toolkit is a Python-based geophysical software that reads GRACE/GRACE-FO time-variable gravity solutions for estimating regional mass change. A suite of geophysical corrections can be applied to the gravity solutions to optimize the GRACE/GRACE-FO data for particular applications. This software was developed with the goal of supporting science applications for time-variable gravity. gravity-toolkit provides data access utilities for ascii, netCDF4, HDF5 and gfc file formats. gravity-toolkit also provides some very high-level plotting programs through the use of Jupyter Notebooks.

digraph { G [label="GRACE/GRACE-FO\ntime-variable gravity" fontname="Lato" fontsize=11 shape=box style="filled" color="#7570b3"] A [label="Non-tidal Ocean and\nAtmospheric Variation" fontname="Lato" fontsize=11 shape=box style="filled" color="#7570b3"] I [label="Glacial Isostatic\nAdjustment" fontname="Lato" fontsize=11 shape=box style="filled" color="#7570b3"] W [label="Terrestrial Water\nStorage" fontname="Lato" fontsize=11 shape=box style="filled" color="#7570b3"] R [label="gravity-toolkit" fontname="Lato" fontsize=11 shape=box style="filled" color="gray"] S [label="Spatial Maps" fontname="Lato" fontsize=11 shape=box style="filled" color="#1b9e77" URL="Spatial-Maps.html"] T [label="Time Series Analysis" fontname="Lato" fontsize=11 shape=box style="filled" color="#1b9e77" URL="Time-Series-Analysis.html"] D [label="Geocenter Variation" fontname="Lato" fontsize=11 shape=box style="filled" color="#1b9e77" URL="Geocenter-Variations.html"] G -> R [arrowsize=0.8] A -> R [arrowsize=0.8] I -> R [arrowsize=0.8] W -> R [arrowsize=0.8] R -> S [arrowsize=0.8] R -> T [arrowsize=0.8] R -> D [arrowsize=0.8] }

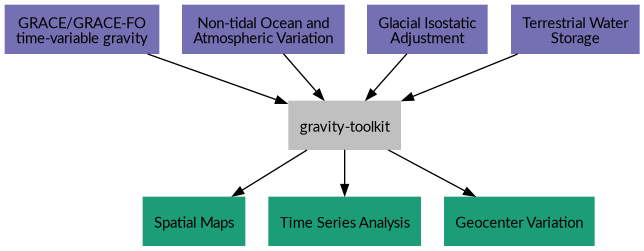

Fig. 1 Data Processing Framework

Steps to Get Started

python podaac_cumulus.py --user=<username> --directory=<path_to_grace_directory> --release RL06

python cnes_grace_sync.py --directory=<path_to_grace_directory> --release RL05

import gravity_toolkit.utilities
gravity_toolkit.utilities.from_figshare(path_to_grace_directory,verbose=True)

  • If correcting for Glacial Isostatic Adjustment: have full path to data file known

    • These can be ascii files direct from many modeling groups or a reformatted ascii/netCDF4/HDF5 file

  • If correcting for other geophysical processes such as terrestrial water storage: have full path known

    • These can be a single netCDF4 or HDF5 file or an index of ascii/netCDF4/HDF5 files

  • Run Jupyter notebook Examples

    • These programs use Jupyter widgets to select datasets and processing parameters

    • Can also sync the data from within the Jupyter Notebook using magics
